39.5-203cm Studio Photography Pantograph Ceiling Rail System

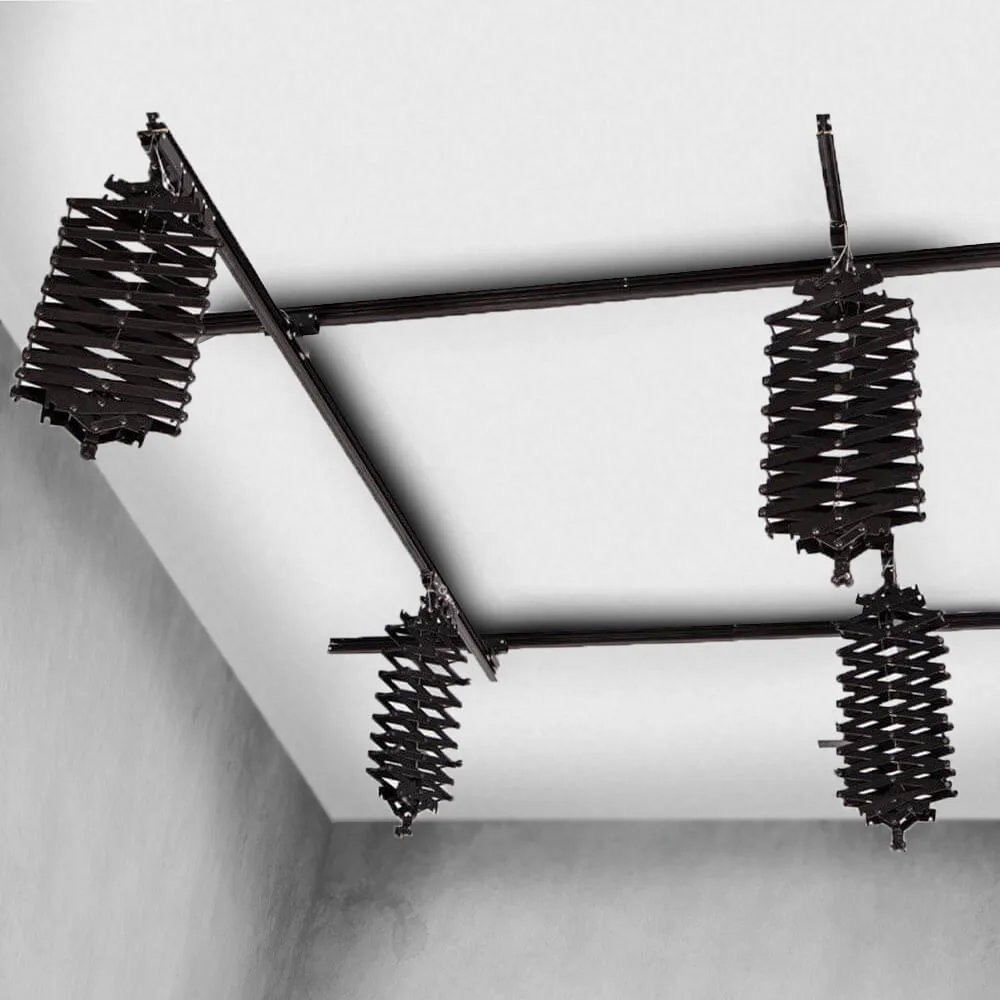

A ceiling rail system moves your lights off the floor entirely: two fixed 3m rails, two mobile 3m rails and gliding carriages cover a 9-square-metre grid, with pantographs that pull each light down anywhere from 39.5cm to 203cm below the ceiling. No stands, no cables at ankle height, no legs creeping into the edge of frame — in a compact backdrop studio, the floor space it returns is the whole point. Each pantograph supports up to 15kg, which covers studio strobes and COB LEDs with substantial modifiers. The system is modular, so the layout can grow or change with the studio. Installation deserves respect: the rails must go into a structurally solid ceiling (never plasterboard or a suspended grid), fixings are not included and must be specified for your ceiling, no single point should carry more than 15kg, and avoid bunching more than two pantographs close together. If in doubt, have a professional survey the ceiling first — a safe installation is the installer's responsibility.
